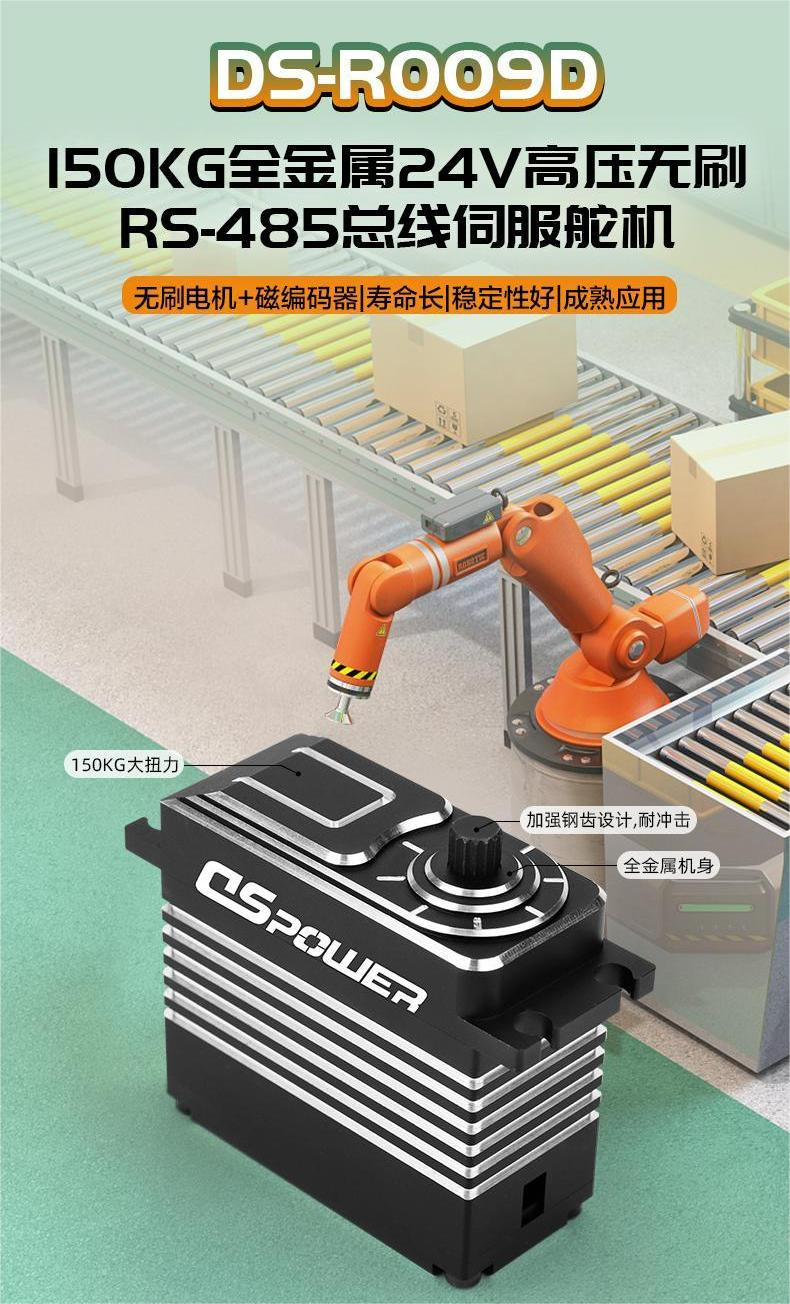

24V high voltage all-metal brushless servo DS-R009D torque up to 150kg

DSpower carefully developed 24V high voltage all-metal brushless servo DS-R009D, with its excellent performance and strong torque, excellent performance in many similar products; Shell: The body of DS-R009D is made of all-metal and adopts reinforced steel tooth design, which greatly improves the strength and stability of the product. Inside the body: High performance brushless motor with magnetic encoder, with high efficiency, low noise, long life, can maintain high performance during long operation. Integrated control system: It can realize the collaborative work of multiple devices and improve the overall work efficiency.

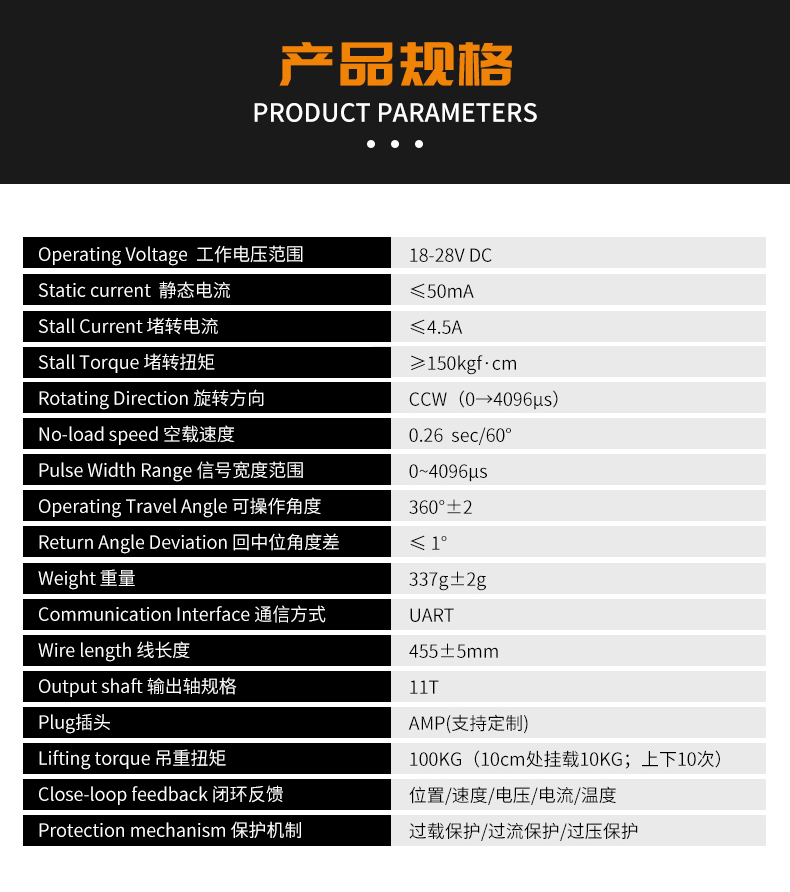

Specification parameter

Product advantage

• RS485 bus communication

RS485 bus communication makes DS-R009D show a high degree of integration and universality in industrial automation and other fields, so that the servo can be seamlessly connected with other devices. Since multiple servos can be mounted on a main control unit, and each servo can set its own ID, it can realize the collaborative work of multiple devices, improving the overall work efficiency. At the same time, closed-loop control and real-time feedback functions such as Angle and temperature allow the servo to master the running state, which is convenient for users to adjust the control strategy in real time to ensure stable and reliable operation.

• High voltage 18~28V

The use of 18~28V high voltage power supply, so that it can maintain stable operating performance in a variety of environments. The wide voltage range reduces the dependence of the equipment on the power supply, improves the adaptability and reliability of the servo, and avoids the risk of failure caused by the instability of the power supply.

• CNC full metal body + reinforced gear set

CNC full metal servo housing with coarse gear set, greatly enhance the strength of the product and impact resistance. The hollow treatment of servo shell can significantly improve its heat dissipation performance. Advanced anodizing technology is used to treat the surface of the fuselage, making it both excellent corrosion resistance and wear resistance.

• High performance brushless motor + magnetic encoder

Because the brushless motor removes the brush, the service life of the servo is greatly improved. At the same time, it is equipped with a magnetic encoder to further improve the servo life.

• Multiple protection mechanisms

It is equipped with a triple protection mechanism of locked-rotor protection, voltage protection and temperature protection, which comprehensively improves the stability and reliability of the product and can be customized according to demand.

• Widely used

DS-R009D can be widely used in various industrial automation equipment, unmanned vehicle chassis, large UAV rudder surface control, pipeline robot and wind power generation and other fields. Its powerful torque output and stable operation performance provide a strong guarantee for the smooth advancement of various engineering projects.

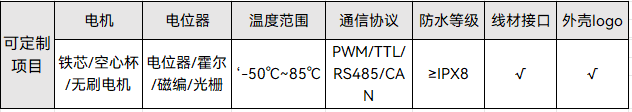

• A variety of styles to choose from, can be customized

Company brand endorsement, has a number of industry utility patents, to provide one-stop solutions from servo research and development to production; The annual production capacity is 12 million, more than 80 engineering research and development personnel, and more than 500 types of existing products.

A number of first-line brand cooperation, the whole supply chain controllable, stable delivery, quality assurance, professional servo to choose desheng.
