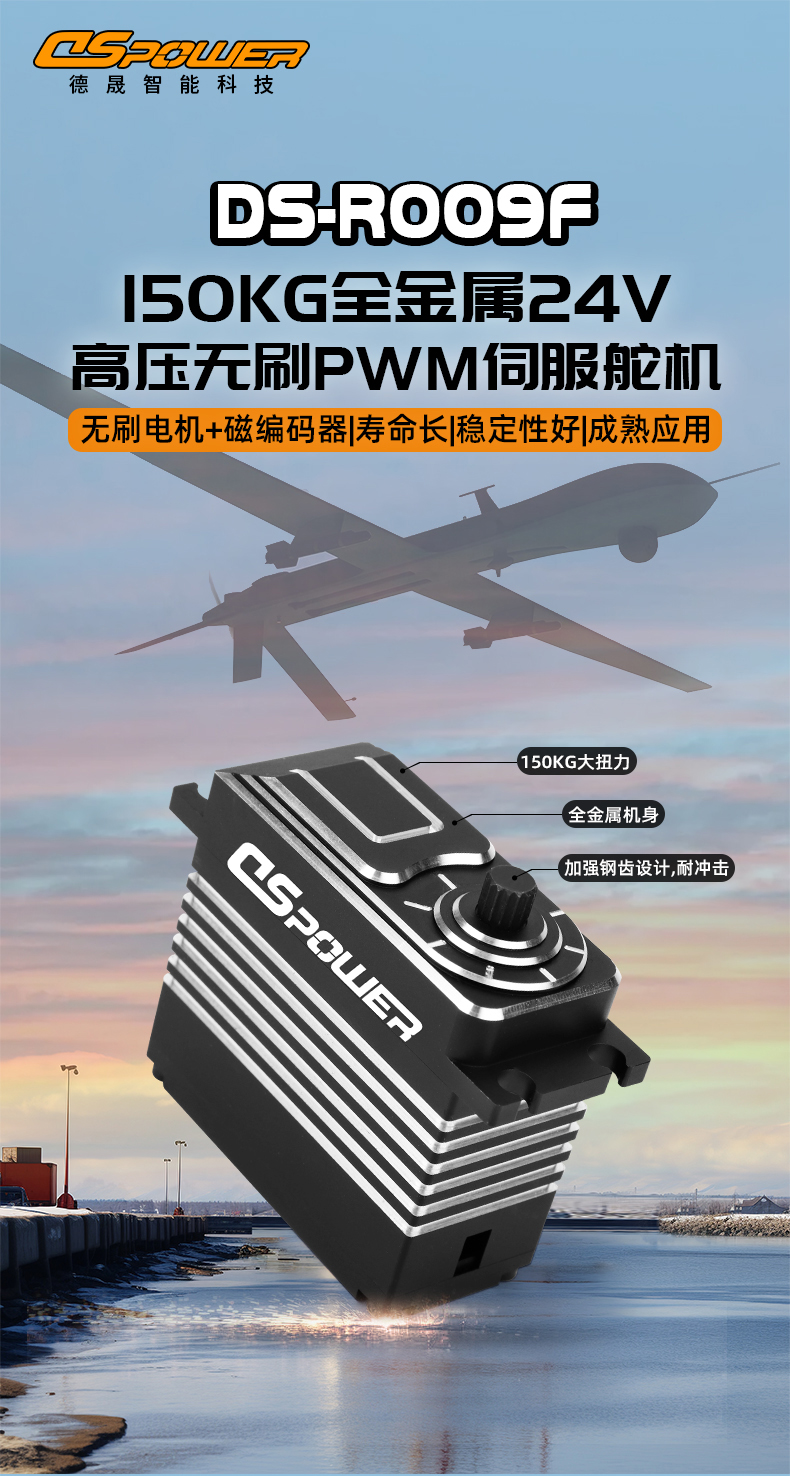

24V high voltage all-metal brushless servo FS-R009F torque up to 150kg

Desheng Intelligence carefully developed 24V high voltage all-metal brushless servo DS-R009F, with its excellent performance and strong torque, excellent performance in many similar products; Shell: The body of DS-R009F is made of all-metal and adopts reinforced steel tooth design, which greatly improves the strength and stability of the product. Inside the body: High performance brushless motor with magnetic encoder, with high efficiency, low noise, long life, can maintain high performance during long operation.

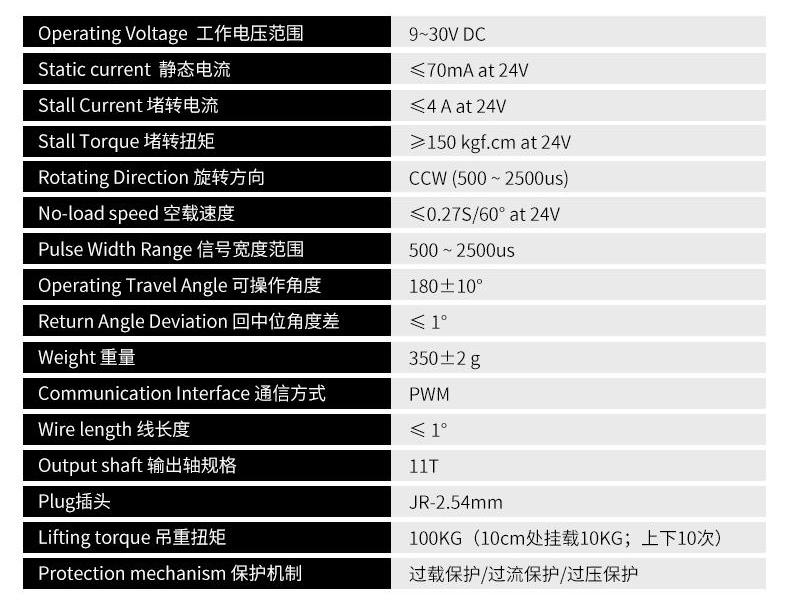

Specification parameter

Product advantage

• High voltage 18~28V

The use of 18~28V high voltage power supply, so that it can maintain stable operating performance in a variety of environments. The wide voltage range reduces the dependence of the equipment on the power supply, improves the adaptability and reliability of the servo, and avoids the risk of failure caused by the instability of the power supply.

• CNC full metal body + reinforced gear set

The CNC all-metal steering gear housing with coarse gear sets greatly enhances the strength and impact resistance of the product. The hollow treatment of servo shell can significantly improve its heat dissipation performance. Advanced anodizing technology is used to treat the surface of the fuselage, making it both excellent corrosion resistance and wear resistance.

• High performance brushless motor + magnetic encoder

Because the brushless motor removes the brush, the service life of the servo is greatly improved. At the same time, it is equipped with a magnetic encoder to further improve the servo life.

• Multiple protection mechanisms

Equipped with three protection mechanisms of locked-rotor protection, voltage protection and temperature protection, it comprehensively improves the stability and reliability of the product.

• Widely used

DS-R009F can be widely used in various industrial automation equipment, unmanned vehicle chassis, large UAV rudder surface control, pipeline robot and wind power generation and other fields. Its powerful torque output and stable operation performance provide a strong guarantee for the smooth advancement of various engineering projects.

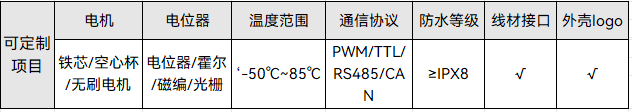

• A variety of styles to choose from, can be customized
