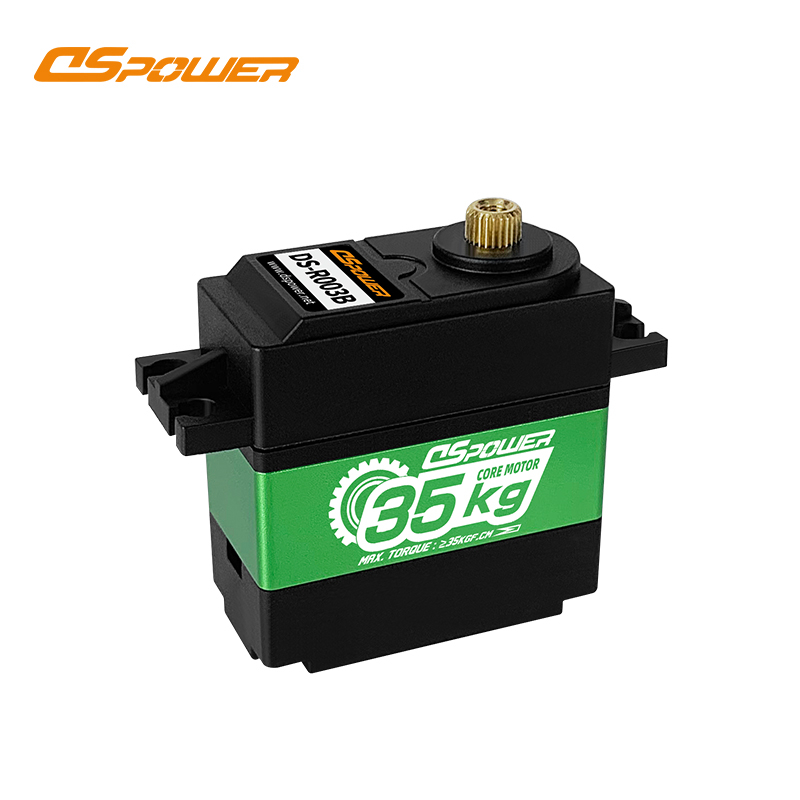

35KG metal teeth impact resistance three defense 180° semi-aluminum frame toy car Bigfoot car climbing car large torque model steering gear

35KG metal teeth impact resistance three defense 180° semi-aluminum frame toy car Bigfoot car climbing car large torque model steering gear
Rated Voltage Rated voltage 7.4V
Standby Current Static current ≤50mA
No Load Current ≤200mA Operating Voltage
Operating voltage range 6.0 to 8.4V Stall Current
Stall Torque ≤5.0A Stall Torque(static)
Weighting Torque(dynamic) ≥35kgf.cm weighting torque (dynamic)
Load torque (dynamic) ≥25.0kgf.cm No Load Speed
No load speed ≤0.16sec./60° Rated Torque
Torque rating 8.0kgf.cm Rated Current
Rated current - Operating Travel Angle
Operating Angle 180±10° Mechanical Limit Angle
Mechanical limit Angle 360° Return Angle Deviation
The median Angle error is less than 1.0° Rotating Direction
Rotation direction CCW(500-2500 μs) Pulse Width Range
Signal width range 500-2500 μs Neutral Position
The median is 1500μs
Storage Temperature Range -20℃~+60℃, ≤90%RH;
Weight Weight N/A
Case Material Aluminium alloy + PA66 nylon. Case material Aluminium alloy + PA66 nylon
Back Lash virtual position ≤1.0°
Dead Band Width Dead band width 8μs
Operating Temperature Range Operating environment -10℃~+50℃, ≤90%RH;
Case Material Aluminium alloy + PA66 nylon. Case material Aluminium alloy + PA66 nylon
Gear Set Material Metal Gear set material metal
Motor Type Core motor. Core motor
It has the advantages of waterproof, high torque, aluminum frame heat dissipation and impact resistance. Widely used in car models, automation, STEAM education, etc
The company mainly R & D, production and sales of various types of steering gear, the main categories are: model aircraft steering gear, car steering gear, fixed wing steering gear, RC steering gear, robot arm steering gear, building block steering gear, building block motor, serial steering gear, metal steering gear, etc. Widely used in models, toys, iot home control, micro mechanical control drive, robot field. The company is located in Desheng Industrial Park, No. 112 Qinghu Road, Tangxia Town, Dongguan City, with more than 300 employees, including more than 50 engineers, and a production base in Loudi, Hunan Province, with an annual output value of over 100 million.
