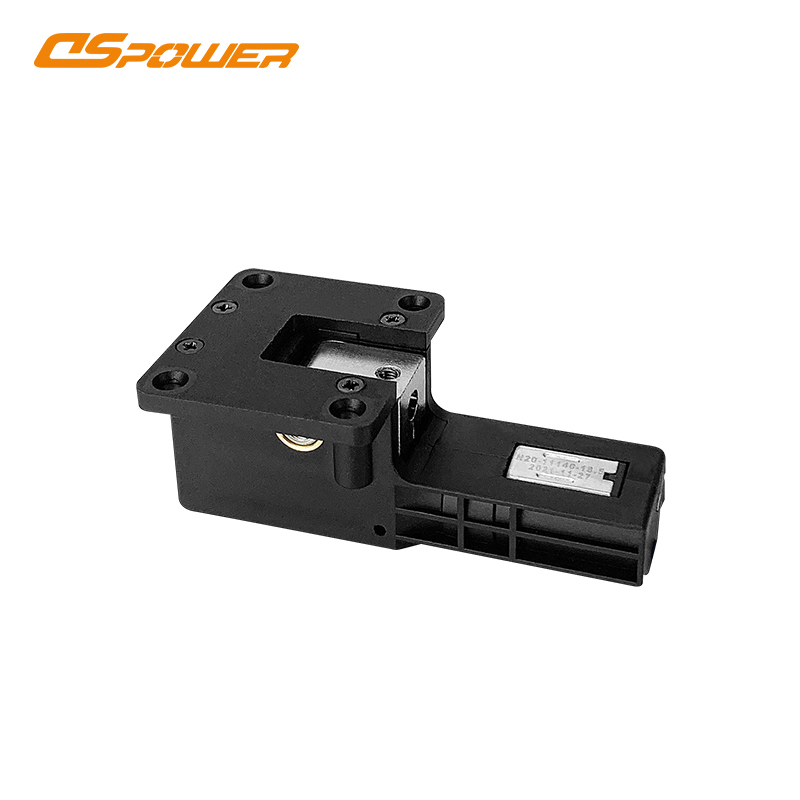

DS-H016 Metal worm power-off protection for model aircraft against impact virtual position Small electric retracting fixed-wing medium landing gear
Model aircraft metal worm power failure protection against impact virtual position small electric retracting fixed-wing medium landing gear
Medium-sized landing gear, suitable for remote control aircraft, aircraft model, fixed wing, UAV and other landing gear retraction.
This product uses metal worm, copper bearing, and auxiliary overcurrent power off protection. It has the advantages of large torque, small virtual position, long life and impact resistance.
4. Electrical characteristics
Electrical Specification (Function of the Performance) :
No. Item 5.0V
4-1 No-load current ≤200mA
4-2 Load weights
≥5kgf.cm
4-3 motor lock current
≤1.2A 3 seconds protection
4-4 Passenger support tripod life
≥ 24 hours of continuous testing
4-5 The landing gear should be lowered to 0° or less
4-6 Empty position of the landing gear retraction ≤0.5°
4-7 Rise-fall time (stopwatch measurement) 2S±0.3s
4-8 gear ratio Gear ratio 1:30
5. Mechanical characteristics
Mechanical Specification:
No. Item Specification
5-1 Appearance Dimensions
See drawings, black plastic case
5-2 mechanism limit Angle
90 °
5-3 Weight
93g
5-4 Wire specifications
With 1.2mm silicone wire
5-5 Length of the conductor
Exposed 210± 10 mm (without plug)
