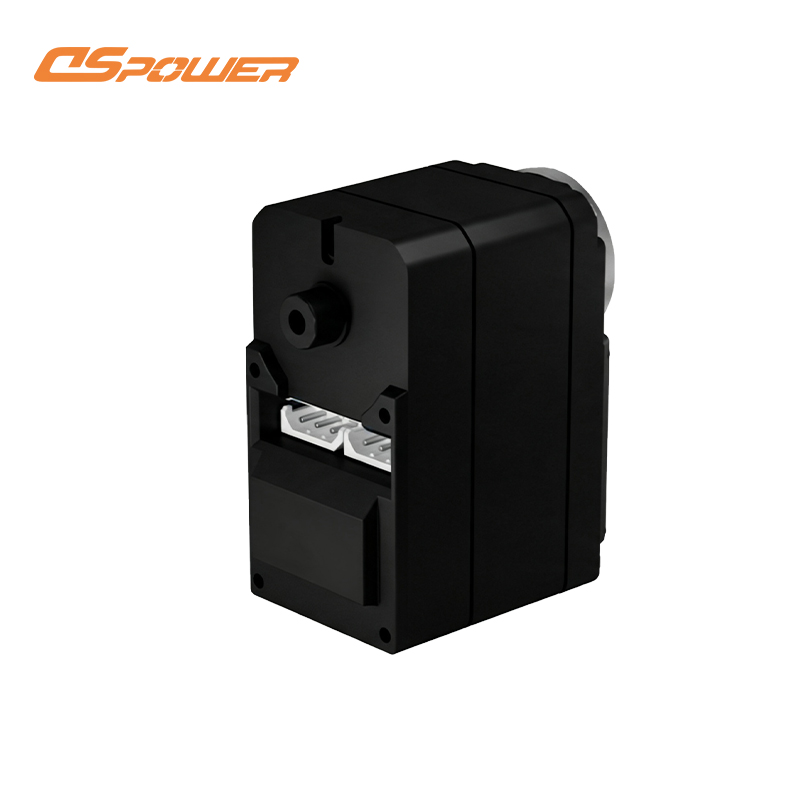

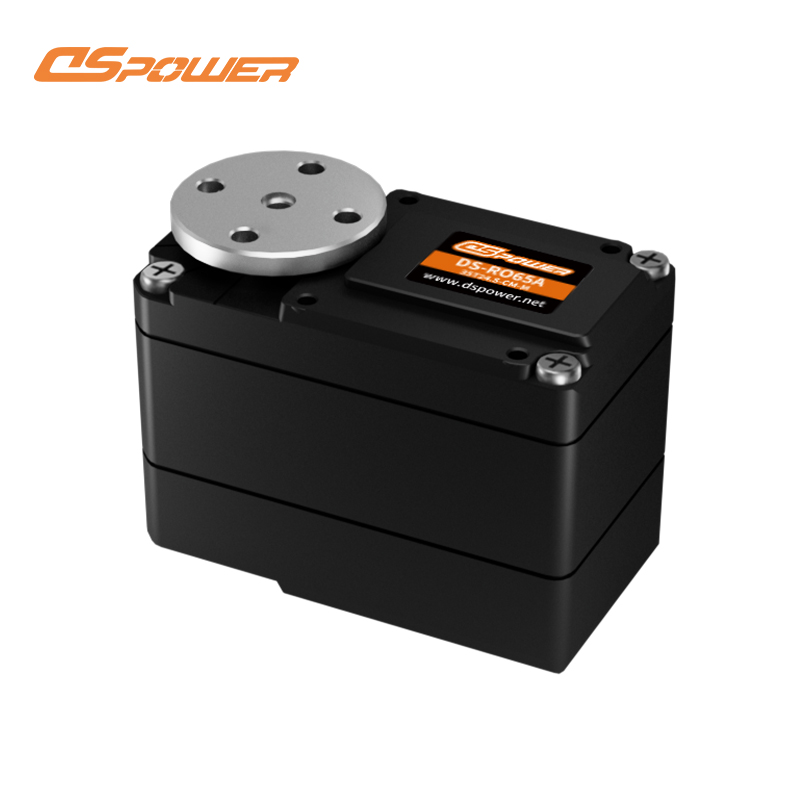

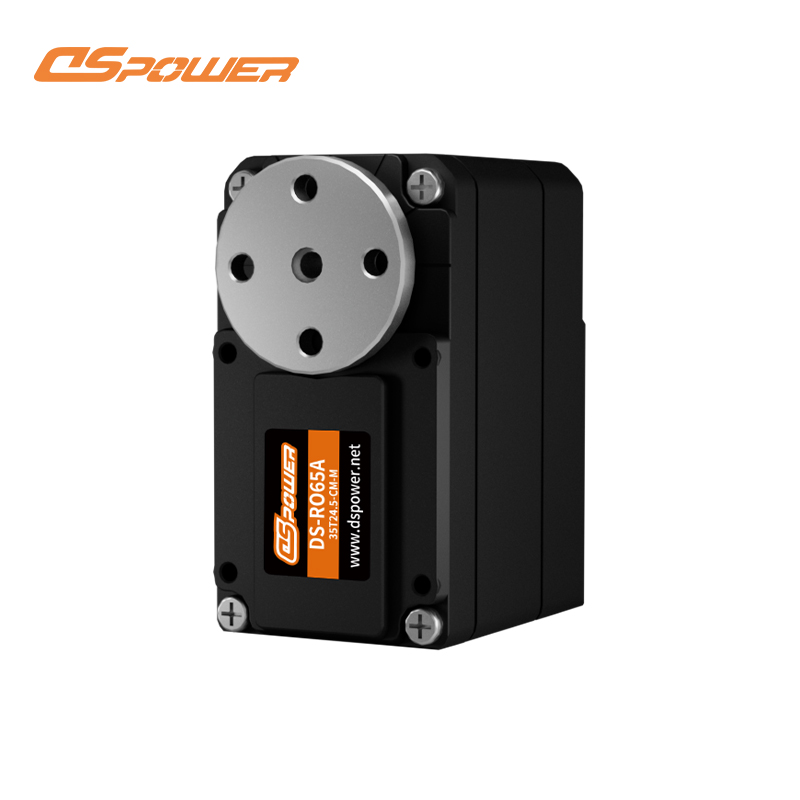

DS-R065 TTL Bus Servo | Drop‑in Replacement for Microduck Robot Duck Servo, Mass‑Production Validated, Magnetic‑Encoder High‑Torque Servo with Optional Clutch Shock‑Protection for Robotic Joints

The R065‑series are mass‑production‑grade TTL‑bus smart servos, serving as a proven drop‑in alternative for Microduck robot duck servos and already deployed in volume by major robot brands with balanced quality and cost performance. Equipped with a 12‑bit magnetic encoder, they support 360‑degree continuous rotation and full‑parameter feedback of position, current and temperature, together with multi‑layer built‑in electrical protection. R065A/R065B/R065C share identical mounting dimensions for direct hardware interchange, covering 7.4 V and 12 V power supply systems. A custom clutch version is available to absorb transient impact loads for mechanical protection. Ideal for humanoid robots, quadruped robots, small robotic arms and educational competition prototypes. Plastic housing provides no IP‑rated protection for bare‑unit outdoor exposure. Intermittent‑duty operation with convenient configuration via FD host software.
