Designed for 1/14 racing models, the high life metal tooth servo DS-S007M no load speed ≤0.10sec/60°

The DS-S007M recently launched by deseng Intelligence is a high-life metal tooth servo designed for small high-speed vehicle models, with no-load speed ≤0.10sec/60° This gives the servo a significant advantage in response speed. In addition, the high precision copper teeth produced by the hobbing process provide no more than 1° for the servo; Thus, the steering accuracy of the model is improved.

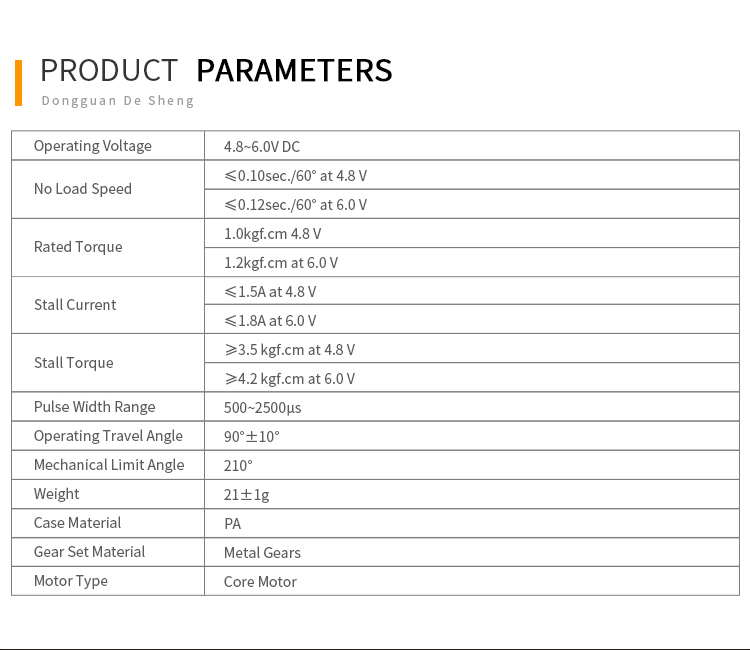

Product specification

Product advantage

• Advanced hobbing technology + high precision copper teeth

Compared with the traditional cutting process, the advanced gear hobbing process and high precision copper teeth significantly improve the gear accuracy and impact resistance of DS-S007M under high load and high strength operation conditions, effectively prevent the phenomenon of tooth breakage, improve its stability and durability, and greatly reduce the virtual position of the servo, the minimum virtual position ≤1° .

• Fast response

High quality core motor for higher initial speed. At the same time, the servo small dead zone setting makes it have faster response speed. Under no-load condition, the steering Angle reaches 60&deg. The time is not more than 0.1 seconds. This makes the DS-S007M in the remote control model control process, can achieve a more rapid steering response, to bring the user, better handiness, more smooth operation experience.

• Rotation blocking protection mechanism

When the servo occurs gridlock, its output torque exceeds the overload torque, and lasts for a few seconds, the system will automatically limit the motor current to the safe range, so as to effectively protect the servo (two kinds of gridlock turn-off and gridlock turn-down are optional, overload current and protection time can be modified).

• Water and dust proof design

It can adapt to a variety of harsh environments and can operate stably in a variety of weather and environments

• High load life

Under rated load conditions, the equipment is rotated 100 degrees clockwise and counterclockwise at rated speed, and can run stably for more than 120 hours.

• Wide range of applications

The large torque of 4.2kg makes the S007M widely used in the fields of model aircraft, steam education and high-speed car models

Company brand endorsement, has a number of industry utility patents, to provide one-stop solutions from servo research and development to production; The annual production capacity is 12 million, more than 80 engineering research and development personnel, and more than 500 types of existing products.

A number of first-line brand cooperation, the whole supply chain controllable, stable delivery, quality assurance, professional steering gear to choose desheng.
