Newly upgraded, low body brushless servo with maximum torque of 17kgf.cm, DS-B011 no load speed ≤0.07Sec/60°

DS-B011 is an industrial grade low body brushless servo, high-performance brushless motor with double ball bearing design to greatly increase the life of B011, the highest IPX7 waterproof rating enables the servo to operate stably in a variety of harsh environments. 0.07 Sec / 60 & deg; The no-load speed ensures superior servo response in a wide range of application scenarios.

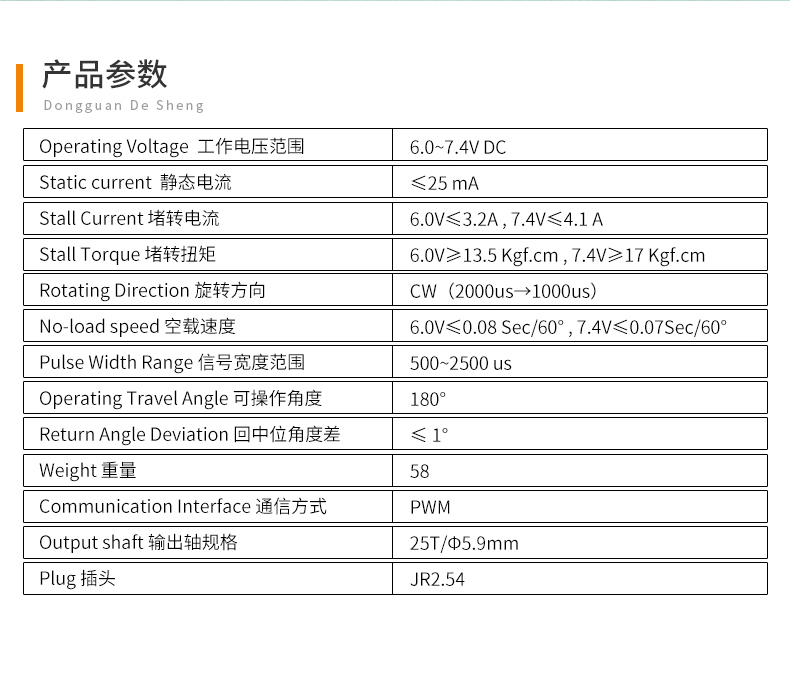

Product specification

Product advantage

• High performance brushless motor + double ball bearings

Because the brushless motor removes the brush, the friction is greatly reduced, the service life of the servo is greatly improved, and the no-load speed of the servo is increased. In the no-load state, the time to turn 60° is no more than 0.07 seconds. In addition, the output shaft is equipped with double ball bearings, which effectively reduces friction during servo rotation, thus further extending the service life of the servo.

• All aluminum frame metal housing

The design of high-end all-aluminum metal shell significantly improves the heat dissipation performance of the product; And through the application of advanced anodic oxidation treatment technology, the surface treatment of the fuselage, so that it has excellent corrosion resistance and wear resistance, showing a bright appearance design.

• Standard low body construction

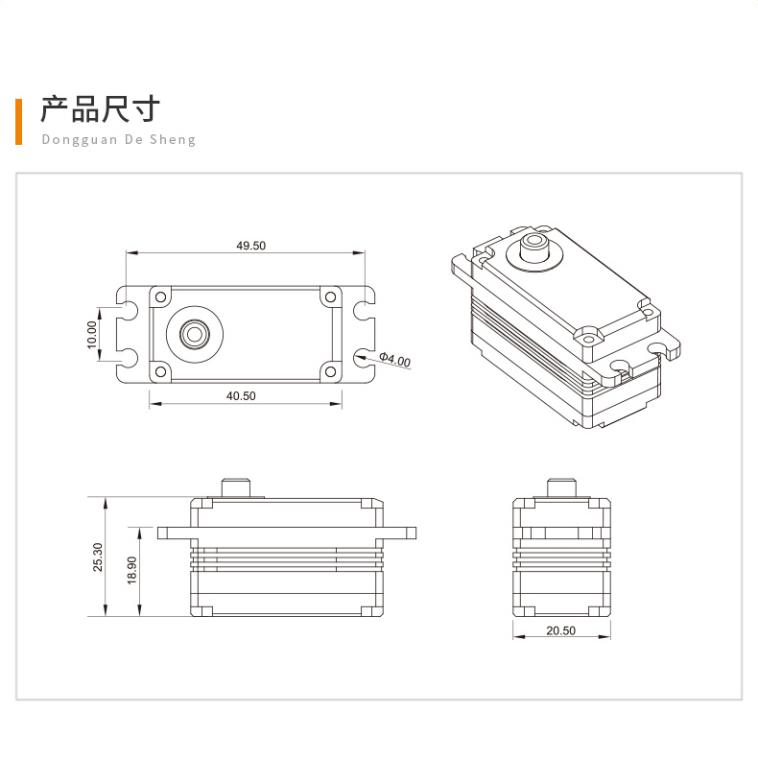

The 25mm servo height allows for more compact integration into various industrial and medical devices, thus saving more space.

• Hobbing process steel teeth

The high precision steel teeth made by hobbing process can improve the accuracy and impact resistance of the steering gear, and reduce the virtual position of the servo.

• Water and dust proof design

With IPX5 waterproof rating, it is sufficient to cope with all kinds of harsh environments and ensure stable operation in all kinds of weather and conditions. It can be customized to IPX7 on demand to further improve its water resistance.

Company brand endorsement, has a number of industry utility patents, to provide from servo selection to development, testing and other one-stop solutions; Passed ISO 9001, ISO14001 certification; All products have CE,ROSH,FCC.
