Programming competition little master DS-E025A

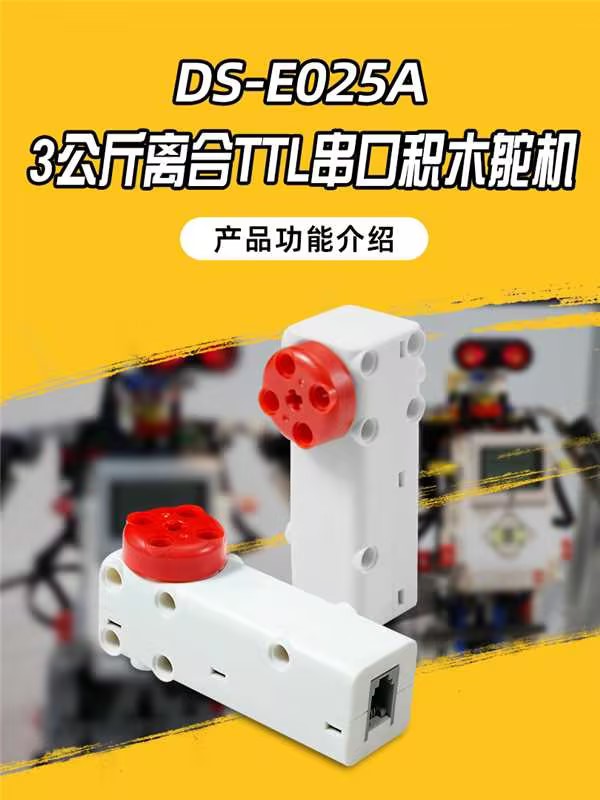

DS-E025A 3KG clutch L-type serial building block steering servo/motor Detailed introduction

                                        Product model: DS-E025A

Product features:

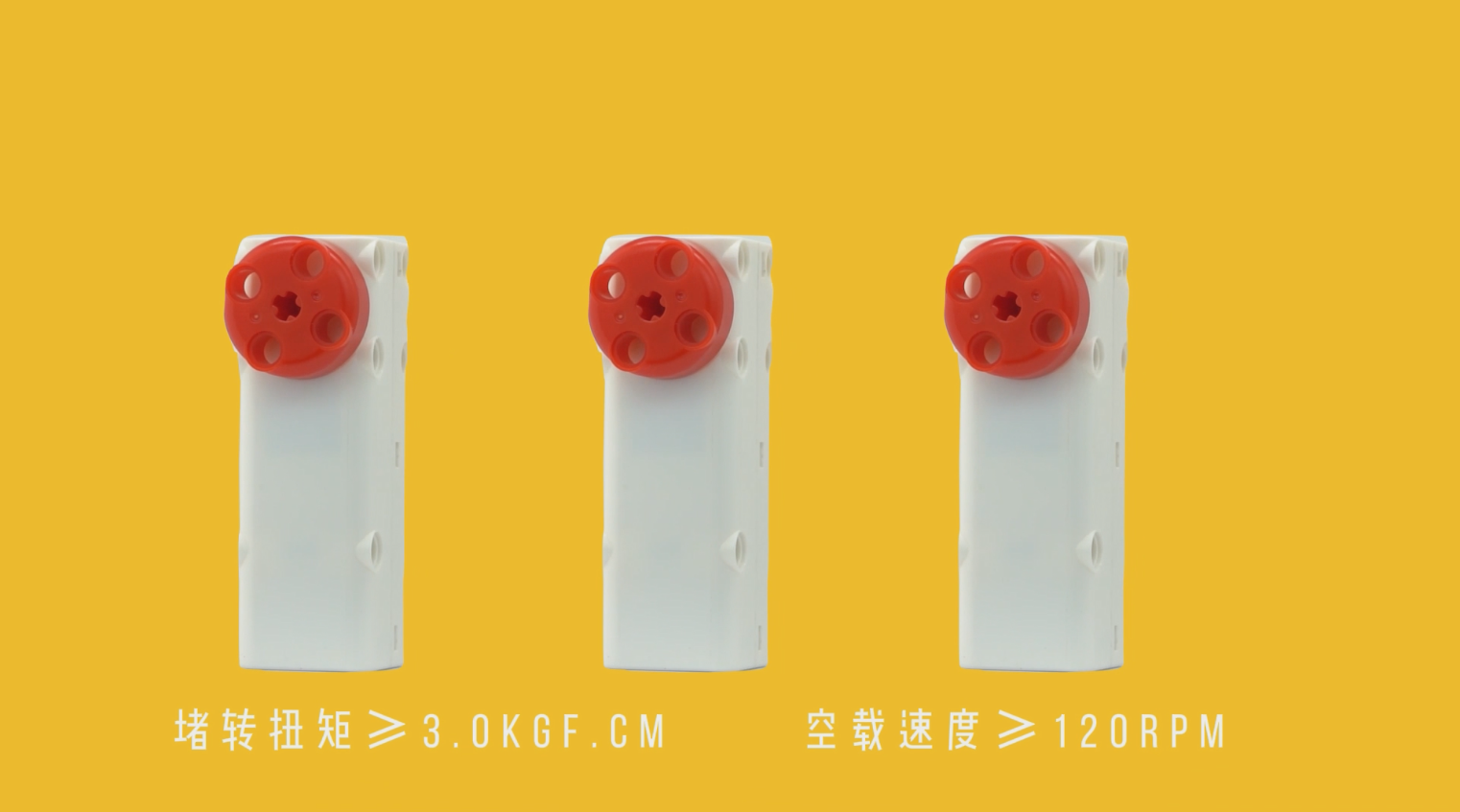

• 3KG clutch design: This product adopts 3kg clutch design, with strong torque output capacity, torque up to 3kgf·cm, while no-load speed up to 120rpm, to meet the needs of a variety of application scenarios.

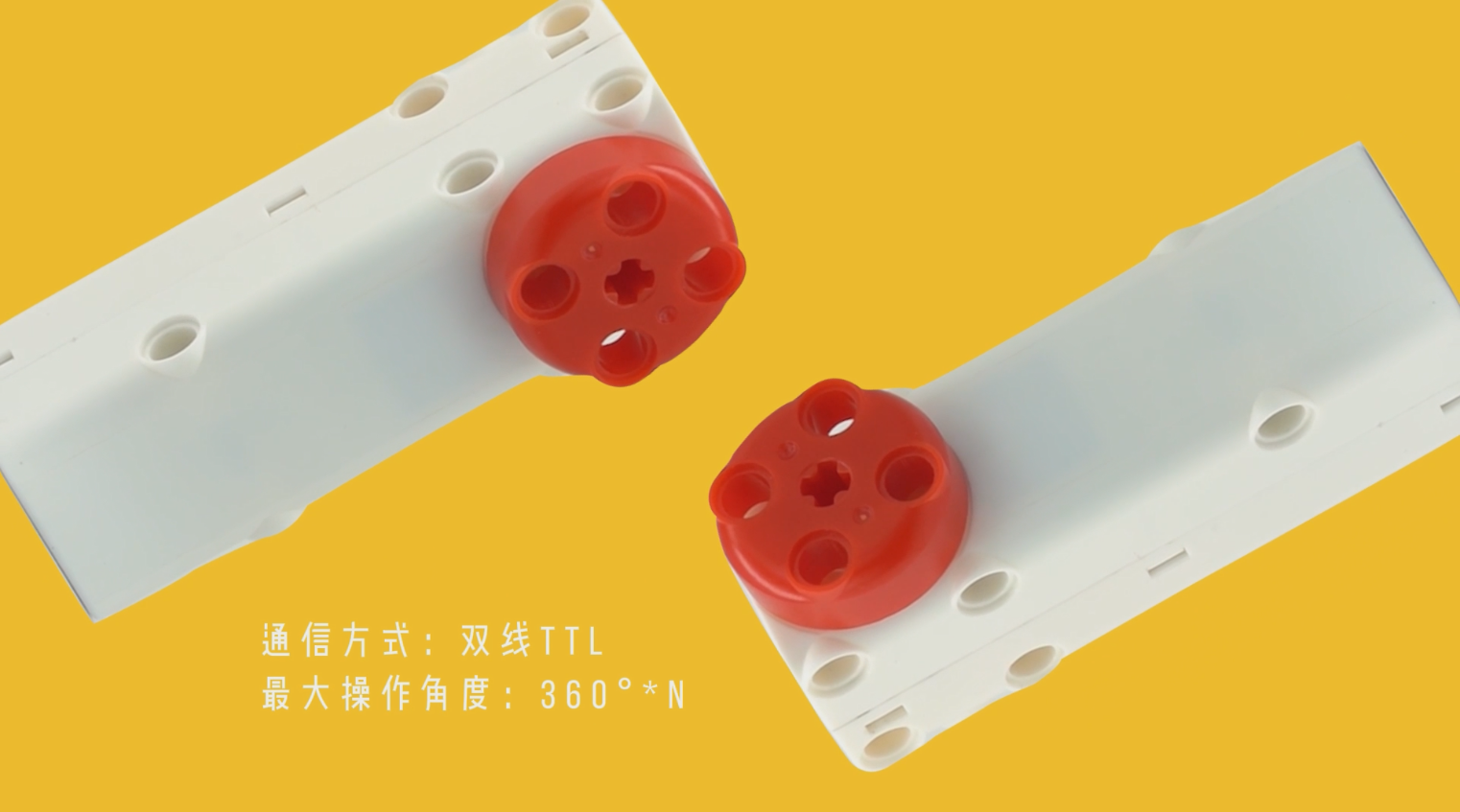

•  L-type serial building block structure: L-type design makes the product more compact and easy to assemble. At the same time, the serial communication mode (two-wire TTL) makes the product easy to integrate with various control systems.




•  Motor and steering servo two-in-one: This product integrates the functions of the motor and steering gear in one, the user can switch through the serial port command with one key, to achieve more flexible use.




•  Closed-loop control: closed-loop control technology is used to ensure that the product can maintain stable performance and accuracy under different loads, especially for competitions and other high requirements.




•  clutch gear design: The unique clutch gear design can effectively prevent tooth sweeping and tooth breakage and prolong the service life of the product.




• POM gear +ABS environmental protection housing: The use of POM gear and ABS environmental protection housing to ensure not only excellent performance, but also environmental protection and safety.

Six advantages:

•  High torque: Torque up to 3kgf·cm, to meet a variety of heavy duty applications.

•  High quality: the use of high-quality materials and advanced production technology to ensure excellent product quality.

•  Excellent service: Provide Python code base, convenient for users to carry out secondary development and application.

•  Cost performance: the perfect combination of high performance and reasonable price, to provide users with superior experience.

•  Safety and environmental protection: The use of environmentally friendly materials, in line with ROHS and CE standards to ensure user safety.

•  Export certification: The products have passed a number of international certifications to support export and meet the needs of global users.

Use environment:

STEAM education, advanced programming competition, LEGO building

Product configuration:

•  Port type: RJ11-4P Network cable RJ45 connector for easy connection to various devices.

•  Maximum operating Angle: 360°*n, to meet various Angle control requirements.

•  clutch trigger force: ≥2kgf·cm, ensure the clutch function is stable and reliable.

Service support:

Python code base is provided to facilitate users to carry out secondary development and application.

Product display:
