Serial bus steering gear DS-R026 with maximum speed of 0.05s/60°, modular combination, multi-protocol support

DS-R026 from dessun Intelligent Technology is an industrial-grade micro server with a maximum speed of 0.05s/60&deg. Torque up to 75 kg, weight is only 90 grams, modular combination, multi-protocol support, support CAN bus, RS485, TTL and PWM control.

Features:

• Support a variety of encoders: support potentiometer, magnetic encoder, double magnetic encoder, magnetic + Hall and other sensors; The double magnetic braid can provide the accurate position information of the steering gear, measure the rotation speed of the steering gear, and judge the rotation direction of the steering gear. Compared with single magnetic braid, double magnetic braid can provide many advantages, such as higher precision, higher stability, wider measuring range, faster response speed and so on.

• All-metal fuselage design: strong and durable, excellent sealing performance, effectively prevent moisture penetration, waterproof grade up to IPX-7, the use of advanced anodizing treatment technology, the surface treatment of the fuselage, so that it has excellent corrosion resistance and wear resistance.




• All-metal gear with brushless motor: excellent life and quiet performance, can play an excellent role in a variety of professional fields, hollowing treatment inside the body: not only increases the structural strength and impact resistance of the product, but also significantly improves its heat dissipation performance.


• Multi-protocol support: Support CAN bus, RS485, TTL and PWM control and other communication protocols, to meet the communication and control needs between different systems and devices.

• Modular combination: Without customization development, through the combination of different modules, to achieve a variety of functions and applications, so as to meet the needs of different users, that is, out-of-the-box.

Appearance size:

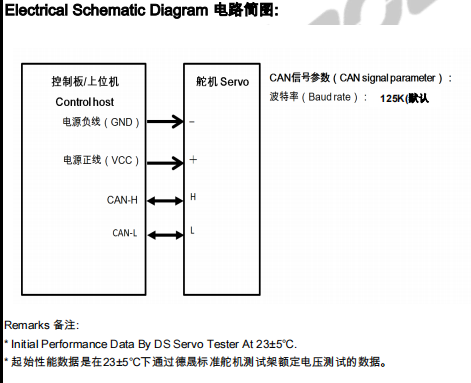

Circuit diagram:

Application scenario:
