The durable 20KG class semi-aluminum frame metal tooth servo DS-S020B has a maximum torque of 28kgf.cm

The DS-S020B released by desheng Intelligence is a 20KG high performance standard servo. The servo adopts a radium-carved semi-aluminum frame shell design, which improves the overall strength while also optimizing the heat dissipation performance and maintaining a beautiful appearance. At 7.4V, the maximum output torque can reach 28kgf.cm. The design of copper teeth and aluminum teeth is used in the servo, which can effectively prevent the phenomenon of the servo sweeping teeth. In addition, double ball bearings are also used in the output shaft position to further improve the service life of the servo.

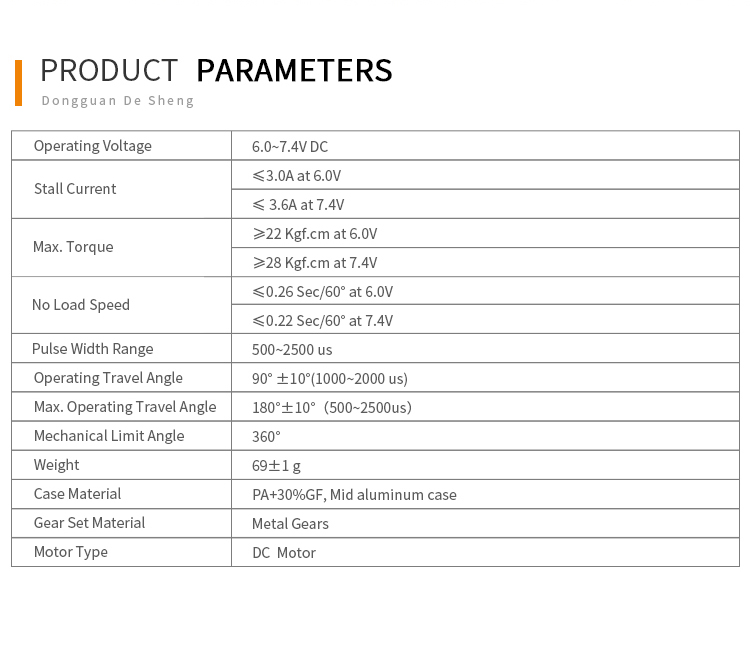

Product specification

Product advantage

• Copper-aluminum gear + double ball bearings

The combination of high-precision copper teeth and aluminum teeth made by hobbing process not only improves the impact resistance of the steering gear, but also reduces the virtual position of the steering gear, so that the return difference is controlled to ≤1&deg. Within the range. In addition, the position of the output shaft is equipped with double ball bearings, which effectively reduces the friction during the rotation of the steering gear, thus further extending the service life of the steering gear.

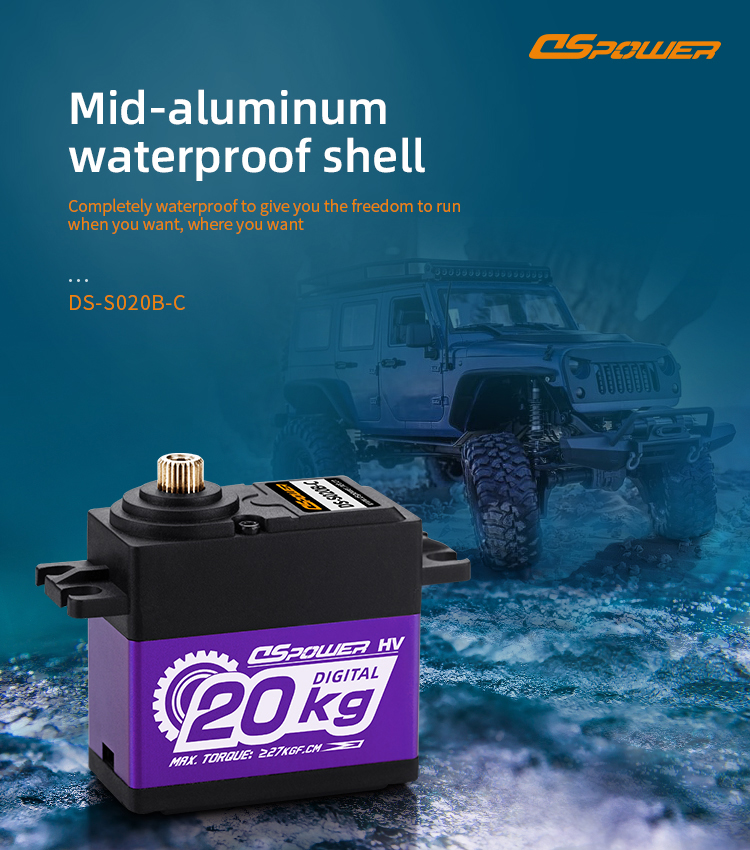

• Radium-carved aluminum shell

Compared with the full plastic shell, the semi-aluminum frame metal shell improves the overall strength of the steering gear, but also optimizes the heat dissipation performance of the product, and the characteristics of radium carving also improve the beauty of the product.

• Multiple waterproof treatment inside

In order to increase the waterproof performance of the product, a waterproof rubber ring is added at the joint, effectively blocking the water into the interior. Secondly, the circuit board uses three anti-paint for waterproof treatment, which further enhances the moisture-proof and anti-corrosion ability of the circuit board. In addition, the motor and potentiometer are also sealed, further improving the waterproof performance.

• Rotation blocking protection mechanism

When the steering gear is blocked, its output torque exceeds the overload torque, and lasts for a few seconds, the system will automatically limit the motor current to the safe range, so as to effectively protect the steering gear (two kinds of blocking modes are optional, overload current and protection time can be modified).

• 28kg high torque

The high torque of 28kg makes the S020B widely used in the fields of robotics, industrial automation and high-speed vehicle models
