The minimum virtual bit of the semi-aluminum frame metal-toothed steering gear DS-R003B with the maximum torque of 35KG is less than 1°

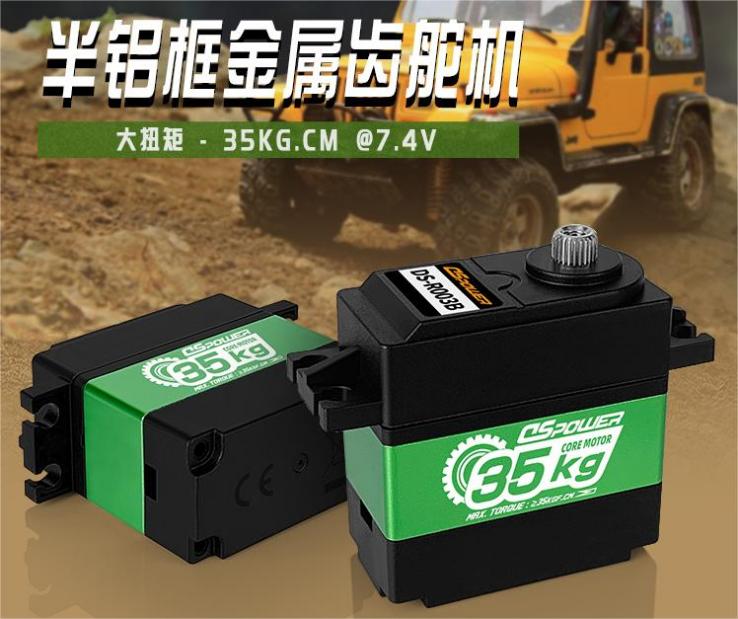

DS-R003B is a 35KG class high-performance micro server, equipped with high-precision and strong metal gear, and the gear hogging process is formed in one piece. The maximum output torque can reach 35kgf.cm at 7.4V voltage environment. The semi-aluminum frame metal housing makes the steering gear lightweight and also enhances the heat dissipation performance.

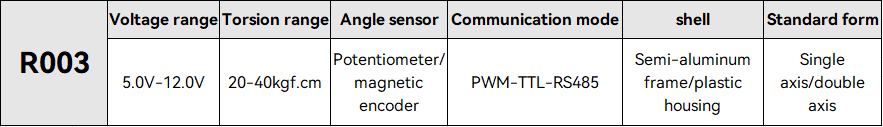

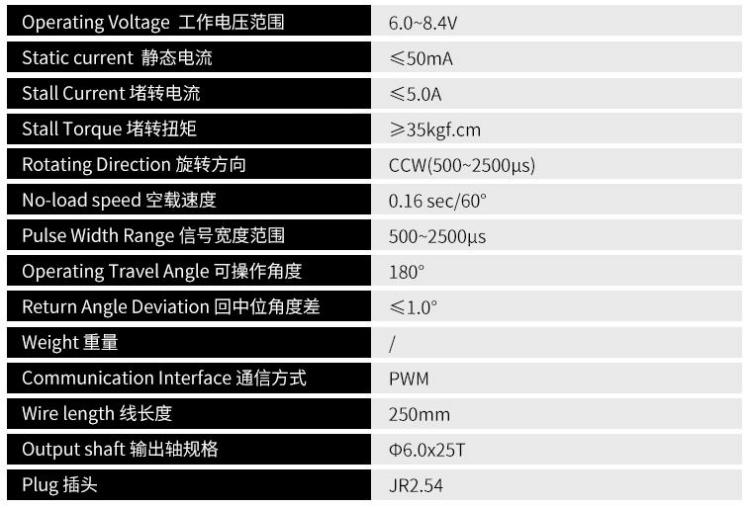

Product specification

Product advantage

• Advanced hobbing technology + high strength output steel teeth

Compared with the traditional cutting process, the advanced gear hobbing process and high-strength output steel teeth significantly improve the gear accuracy and impact resistance of DS-R003B under high load and high-strength operation conditions, ensure its stability and durability, and greatly reduce the virtual position of the steering gear. In addition, the high-strength output steel teeth not only optimize the impact resistance of the product, but also significantly increase the service life of the steering gear.

• Semi-aluminum frame metal housing

Compared with the full metal shell, the semi-aluminum frame metal shell not only reduces the weight of the product, but also improves the heat dissipation performance of the product, and the characteristics of radium carving also improve the beauty of the product.

• Electronic burn protection

Effectively protect the steering gear circuit, prevent accidents, improve work efficiency, simplify maintenance and adapt to different working environments.

• 35KG high torque

The large torque of 35kg makes R003B widely used in the fields of robotics, industrial automation and high-speed vehicle models

A variety of styles to choose from, can be customized

Company brand endorsement, a number of industry utility patents, exclusive clutch tooth design; Passed ISO 9001, ISO14001 certification; All products have CE,ROSH,FCC.
