The standard copper tooth servo DS-S015M with a maximum torque of 15KG effectively prevents tooth breakage

The DS-S015M launched by dessun Intelligence is a 15KG class of high-performance micro server. The high strength nylon housing provides strong impact resistance while being lightweight. Equipped with high-precision copper teeth, the hobbing process is formed in one, effectively preventing the phenomenon of tooth breakage. In a voltage environment of 6V, the maximum output torque of the S015M can reach 15kgf.cm, which can be customized on demand.

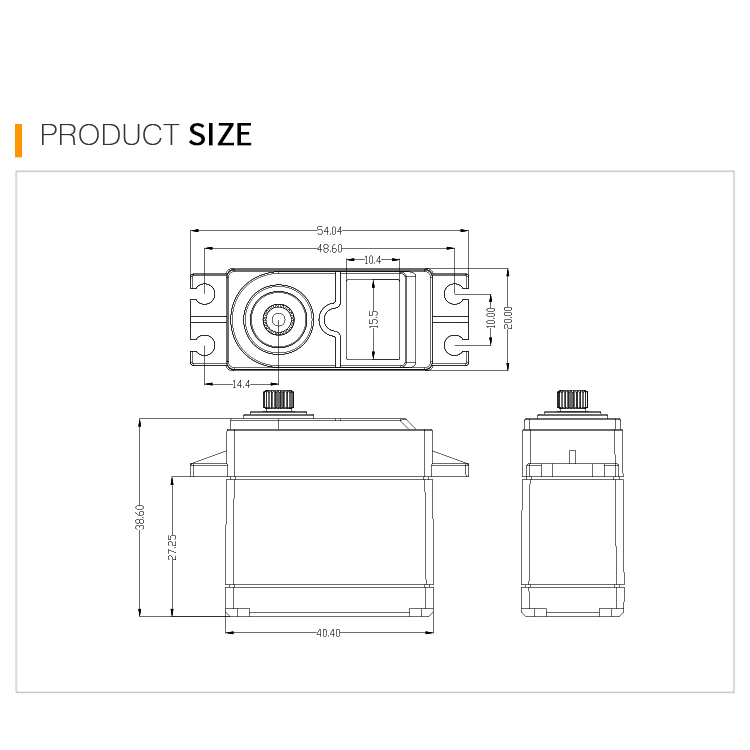

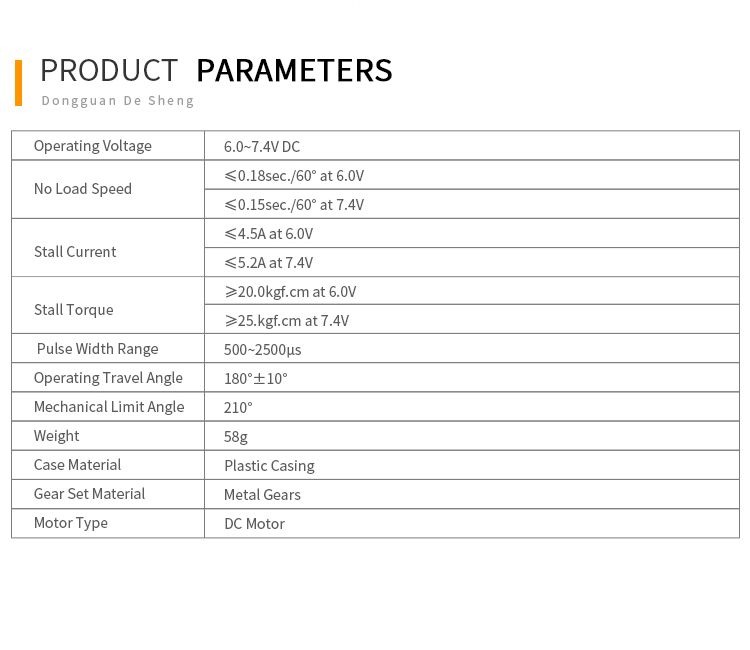

Product specification

Product advantage

l Impact resistant nylon housing

Compared with other metal shells, nylon shells are not only lightweight, but also have very good impact resistance, which can effectively reduce the damage to the internal electronic components. In addition, it also has good corrosion resistance, which can resist the erosion of environmental factors such as acid and alkali, salt spray, and humidity, thus extending the service life of the servo

l Advanced hobbing technology + high precision copper teeth

Compared with the powder metallurgy process, the high precision copper teeth pressed by HAMAI gear hobbing machine in Japan significantly improve the gear accuracy and impact resistance of DS-S015M under high load and high strength operation conditions, effectively prevent the phenomenon of tooth breakage, improve its stability and durability, and greatly reduce the virtual position of the servo, the minimum virtual position is less than 1°.

l Electronic fire protection

Effectively protect the servo circuit, prevent accidents, improve work efficiency, simplify maintenance and adapt to different working environments.

l 15KG high torque

The high torque of 15KG makes the S015M widely used in the fields of robotics, industrial automation and high-speed vehicle models. In addition, the S015M's torque can be increased to 18.5kgf.cm at 7.4V voltage, further improving its performance.

l Waterproof and dustproof design

It can adapt to a variety of harsh environments and can operate stably in a variety of weather and environments.

l Wide application

Thanks to its strong performance, S015M is widely used in the fields of robotics, smart home, vehicle model and airplane.

Company brand endorsement, has a number of industry utility patents, to provide one-stop solutions from servo research and development to production; The annual production capacity is 12 million, more than 80 engineering research and development personnel, and more than 500 types of existing products.

A number of first-line brand cooperation, the whole supply chain controllable, stable delivery, quality assurance, professional servo to choose desheng.
