Understanding Servo : A Comprehensive Overview
Views: 226 Author: Site Editor Publish Time: 2025-08-11 Origin: Site

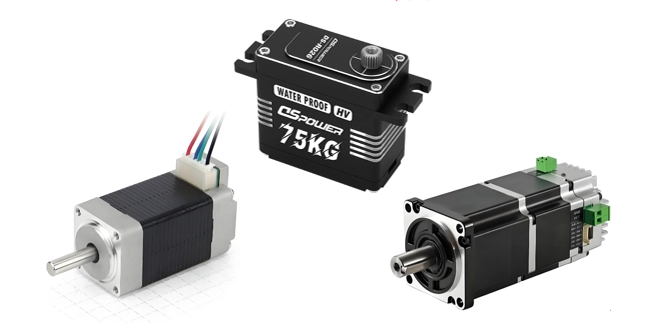

Servo , are a type of actuator that plays a crucial role in automation and control systems. They are known for their ability to provide precise control over angular position, velocity, and acceleration. In this article, we will explore the characteristics, advantages, and typical applications of servos, drawing insights from a comparative table that also includes stepper motors and servo motors.
What is a Servo ?
A servo is a simplified version of a servo system. It integrates a motor, a reduction gear, control circuits, and a position sensor (either a potentiometer or a magnetic encoder). Servo motors are designed to control angles, either in a single rotation of 360° or multiple rotations. A servo is a closed-loop control system.
How Do Servo Work?
The operation of a servo involves a control board that receives signals to control the motor's rotation. The motor drives a gear assembly, which in turn transmits motion to the output shaft. This shaft is connected to a position sensor that feeds back to the control circuit, creating a closed-loop control system. Servo motors can be categorized based on the type of signal they use: PWM (Pulse Width Modulation) servos and bus-type serial port servos (such as TTL, RS485, CAN, etc.).
Advantages of Servos
High Integration
Servo motors are highly integrated, featuring modular designs where the drive is integrated, making them ready to use with minimal setup. This integration simplifies the design and reduces the complexity of the control system.
Compact Size with High Torque
Despite their small size, servo motors can deliver significant torque. This characteristic makes them ideal for applications where space is limited but high torque is required.
Cost-Effective
Servo motors are cost-effective, especially suitable for consumer applications and scenarios where precision requirements and operating frequencies are not extremely high.
Applications of Servos
Servos are widely used in various applications due to their versatility and precision:
Model Aircraft Control: They are used to control the surfaces of model aircraft, providing precise and reliable movement.
Robot Joints: In robotics, servo motors are used for joint control, offering the necessary precision and torque for various movements.
Smart Home Devices: Servo motors are used in smart home applications, such as curtain motors, where compact size and high torque are beneficial.
Comparative Analysis
When compared to stepper motors and servo motors, servo motors offer several advantages:
Control Method: While stepper motors operate in an open-loop system without feedback, servo motors use a closed-loop system with feedback from position sensors, ensuring more accurate control.
Drive/Control Integration: Unlike stepper motors, which require separate drivers, servo motors integrate the control board, motor, and reduction gear into one unit.
Precision: Servo motors generally offer higher precision than stepper motors, with the ability to achieve micrometer-level accuracy.
Response Speed: Servo motors have a faster response time compared to stepper motors, making them suitable for applications requiring quick adjustments.
Torque Capability: Servo motors can provide higher torque across a wide speed range, which is beneficial for applications requiring consistent performance.
Conclusion
Servos stand out for their high integration, compact size, and cost-effectiveness, making them a preferred choice in applications requiring precise angle control. Their ability to deliver high torque in a small package, along with their precision and reliability, makes them indispensable in various fields, from consumer electronics to industrial automation. As technology advances, servo motors will likely continue to play a crucial role in the development of more sophisticated and efficient control systems.
