180KG Class High Torque Servo for Drones, Ailerons, Elevators, Underwater Robots, and Low-Temperature Metal Heavy-Duty Applications

The Desheng W005A heavy-duty servo is a high torque servo designed specifically for high-load applications. It features a stall torque of 180kgf.cm and a lifting capacity of 110kg, with performance comparable to the international 1100wp model. It is suitable for applications in drones, robots, and industrial scenarios.

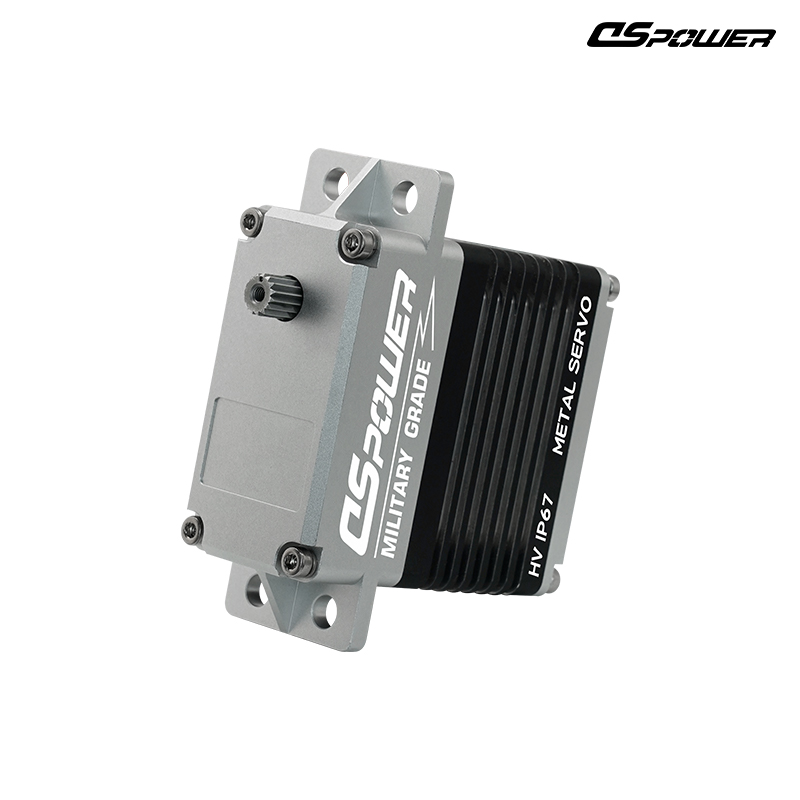

The servo features a full-metal gear structure with deep waterproofing and a high-pressure-resistant housing. It has a default IPX6 waterproof rating, which can be customized to a higher protection level. It supports operation at -20℃ and can be customized for extreme environments down to -40℃ to ensure high reliability. The control method uses PWM pulse width modulation and is compatible with communication protocols such as RS485 and CANopen, offering flexible integration.

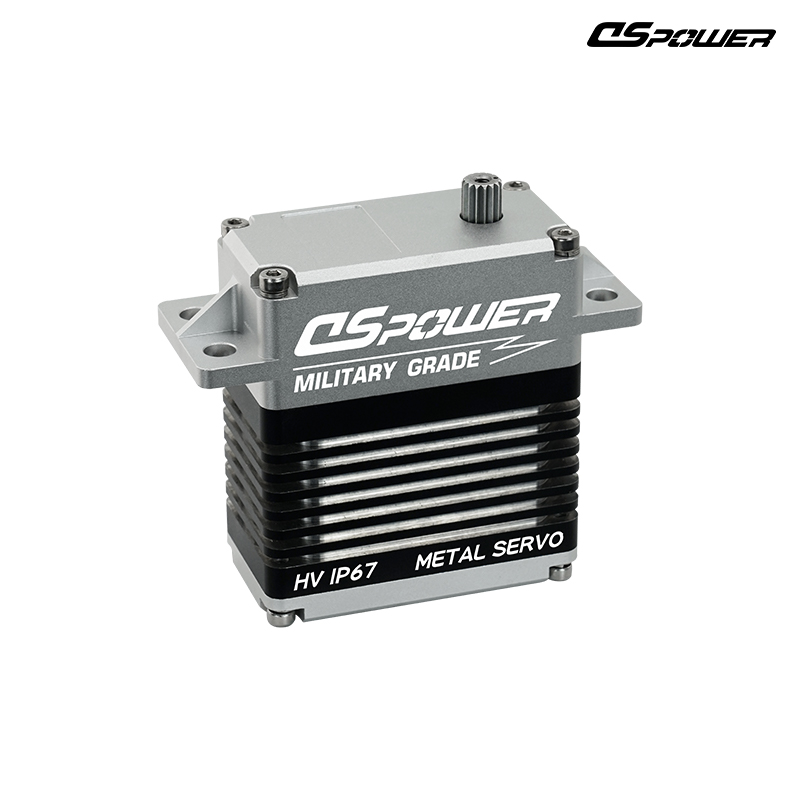

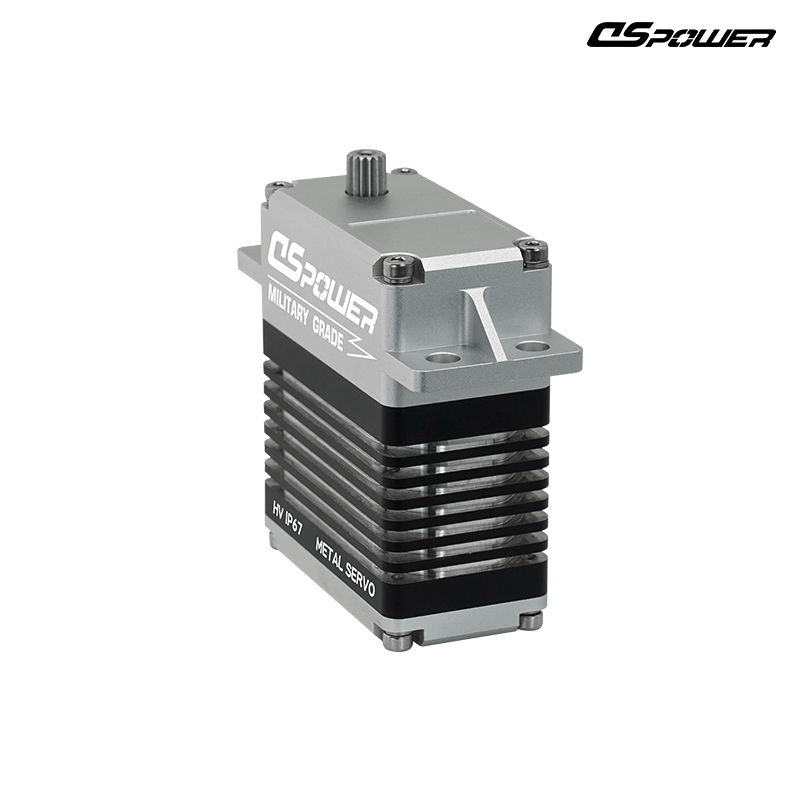

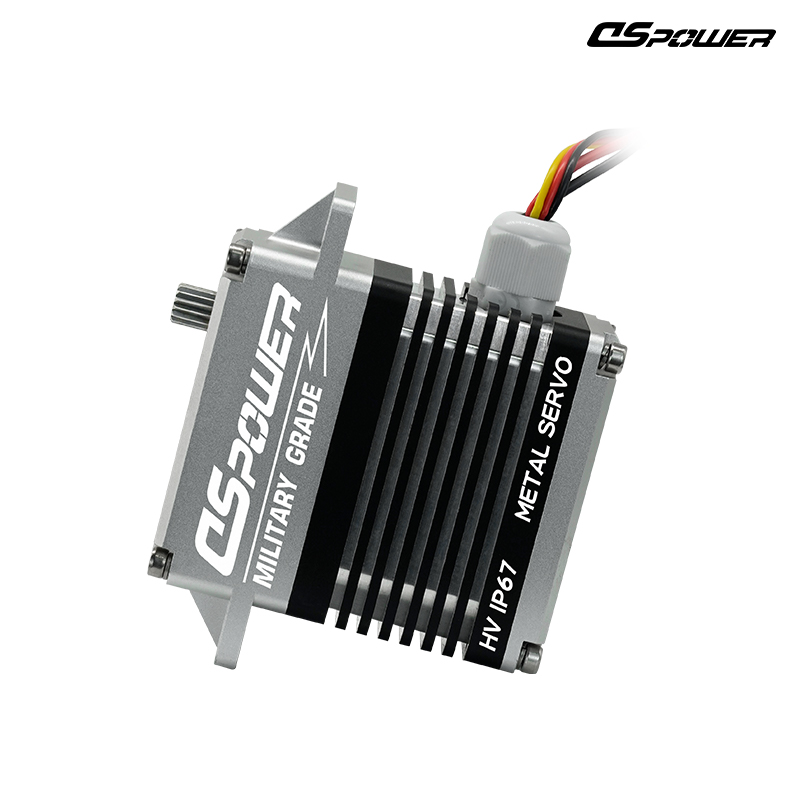

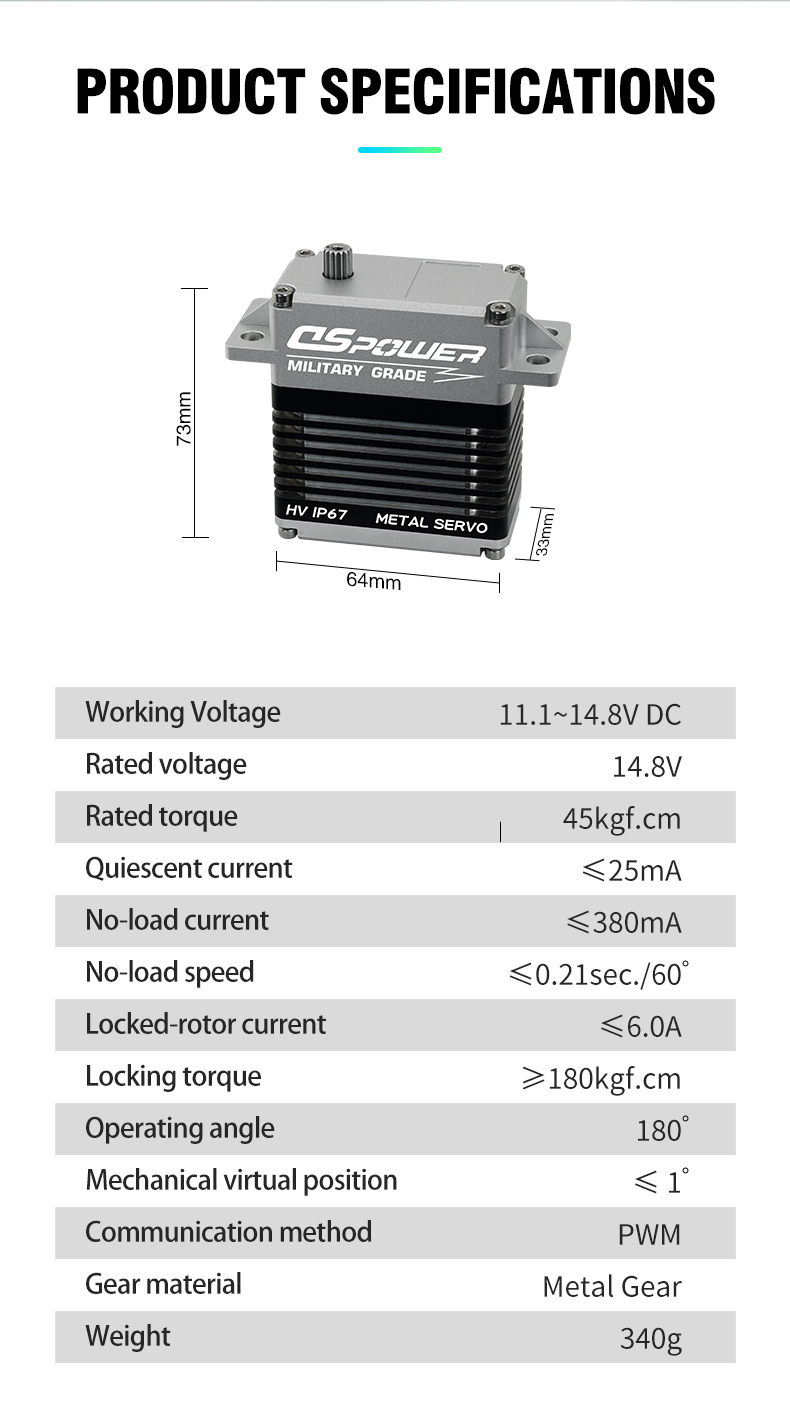

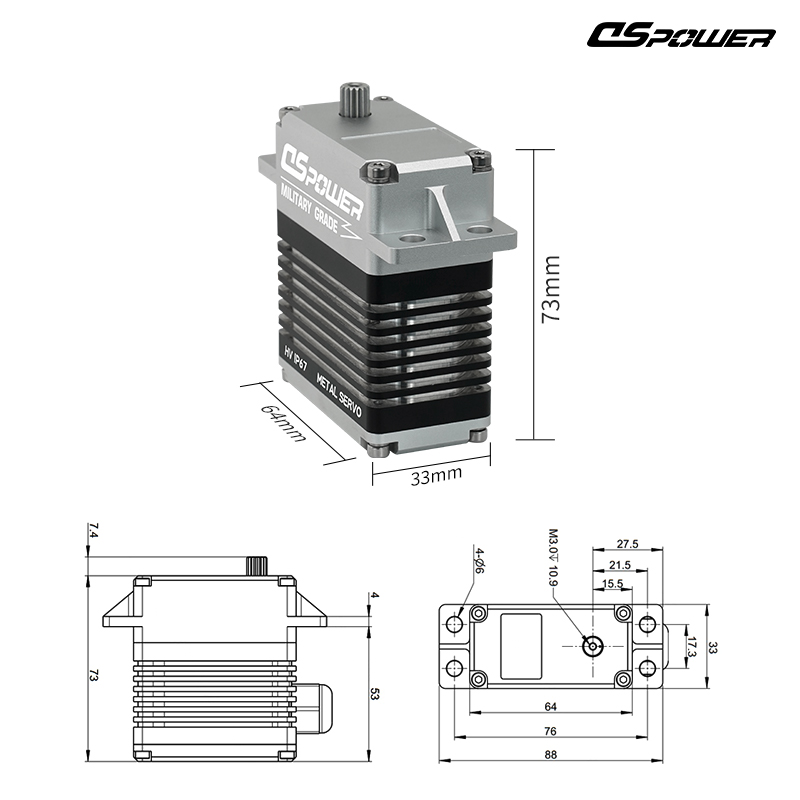

The product has a square design for easy installation and fixation. It uses a long-life iron-core motor internally, with a working voltage range of 11.1~14.8V and a mechanical angle of 180°. The weight is 340g, balancing strength and practicality.
The W005A servo is 100% domestically produced, undergoes strict quality inspection at the factory, and supports customized services. It is ideal for high-end applications such as industrial automation and underwater robots, making it an ideal choice for high-performance motion control systems.
