2 g hollow cup micro servo DS-M005 with small body and large force torque ≥0.35kgf·cm

The 2g hollow cup micro steering gear launched by Deseng Intelligent provides ≥0.35kgf.cm in small volume by carrying high-performance hollow cup motor; cm's high torque while still maintaining excellent response speed. In addition, it can also add electronic protection function to effectively prevent the phenomenon of blocking and burning and sweeping teeth.

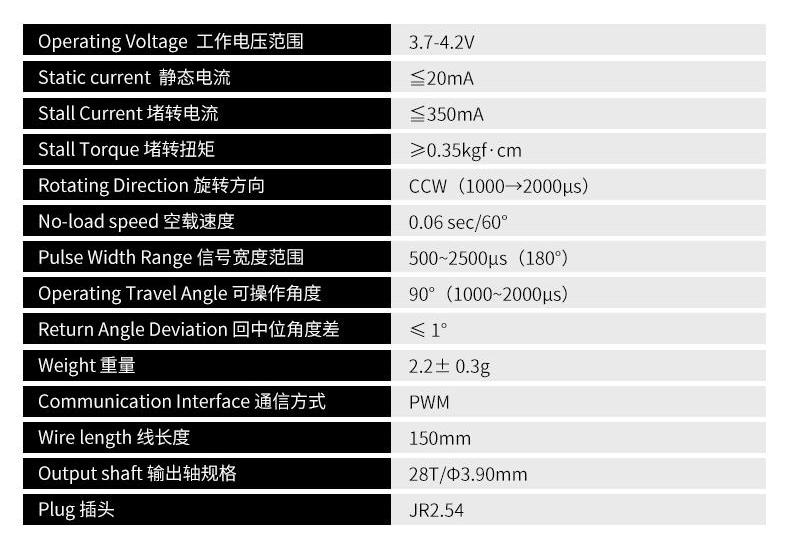

Specification parameter

Product advantage

• Small body strength

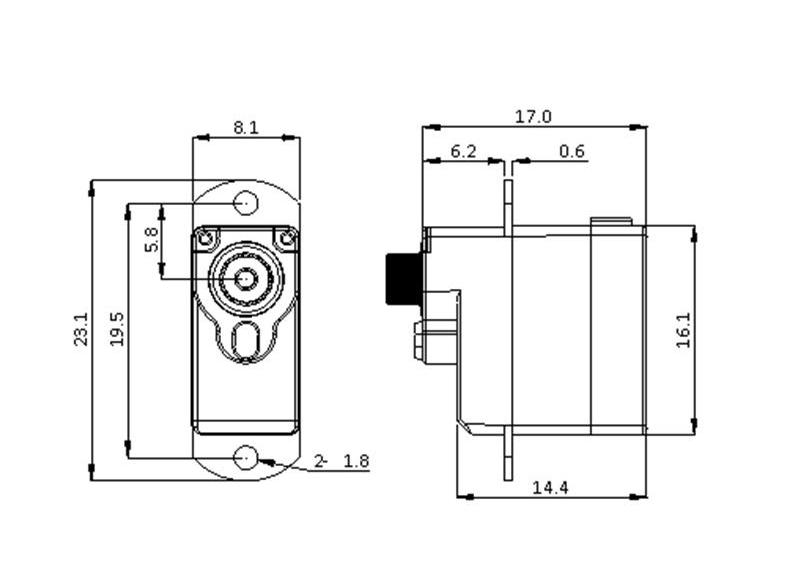

The small body of 16.7*8.2*17mm contains a strong torque of up to 0.35kgf.cm, which makes the M005 have a wide range of applications in model toys, drones, robots and other fields. The mini size makes it easy to embed the small space of various devices in the assembly and application process to meet the use needs of various complex environments.

• High performance hollow cup motor

The excellent initial speed of the hollow cup motor enables the steering gear to have large torque while still providing excellent no-load speed. In no-load state, the steering is 60° The time is not more than 0.06 seconds.

• ≤ 1°;The return of the difference

Return center difference ≤1° The precision gives the M005 excellent Angle control, ensuring stable handling performance, from enabling the model to perform a variety of actions precisely.

• Electronic burn protection

Effectively protect the steering gear circuit, prevent motor burning due to overload or overheating, improve work efficiency, simplify maintenance and adapt to different working environments.

• Wide range of applications

Thanks to the excellent performance of the steering gear itself, DS-M005 can be widely used in a variety of model toys, drones, intelligent switches and other micro control fields.
