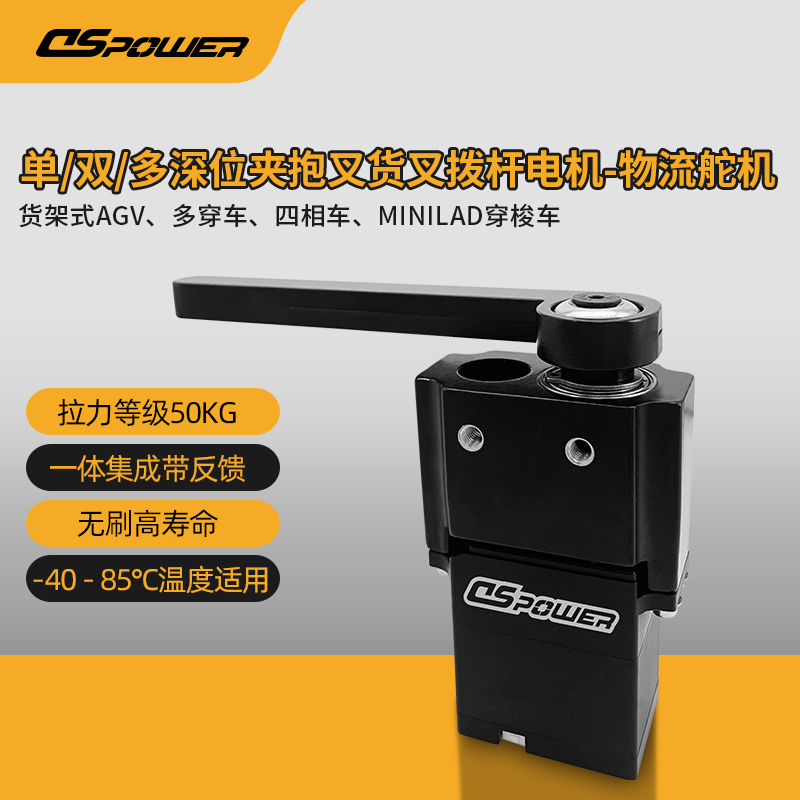

50KG tension servo multi-layer shuttle logistics servo brushless with feedback bin clamp fork shifting lever motor
DS-R018 Logistics steering gear - High life performance stability to provide quality assurance shelf-type AGV multi-pass four-phase MINILAD shuttle car special single/double/multi-depth holding fork fork shift lever motor
AGV shuttle clamp fork fork lever motor - logistics steering gear
Brushless motor + magnetic encoder | long life | good stability | long medium short lever optional
-RS485 servo integration design
- Steel transmission structure design
--40℃ low temperature resistance
Application scenario
Shelf type AGV, multi-layer shuttle, four-phase vehicle, MINILAD shuttle and so on
Tension rating :50KG
Closed-loop feedback: position/speed/voltage/current/temperature
Protection mechanism: overload protection/overcurrent protection/overvoltage protection
1, servo integrated modular design +RS485 bus
2, closed-loop design, multiple feedback - state full grasp
3, factory preset rotation protection
4, one-click set the median - to ensure installation consistency
5, smart steel transmission structure design - anti impact of the material box
6, continuous load more than 1200 hours, life of 2 million times +
7, isolation conductive, anti-reverse protection
8, can customize the lever
Smart design, high performance, long life (steel transmission structure + brushless motor + magnetic encoder)
RS485 bus + integrated control (closed-loop control real-time feedback)
Strong environmental adaptability (-40℃~+85℃, ≤90%RH)
Support different scene customization (lever length and shape)
