Designed for smart logistics, the lever servo DS-R018 50KG pull loop control multiple feedback

DS-R018 logistics steering gear, integrated modular design; Steel transmission structure, effectively reduce the impact of the feed box, while with high performance brushless motor and magnetic encoder, to increase the load life of the steering gear to 2 million times; RS485 communication protocol with multi-angle position calibration system, closed-loop control, real-time feedback, but also one-click setting of the median, to ensure installation consistency.

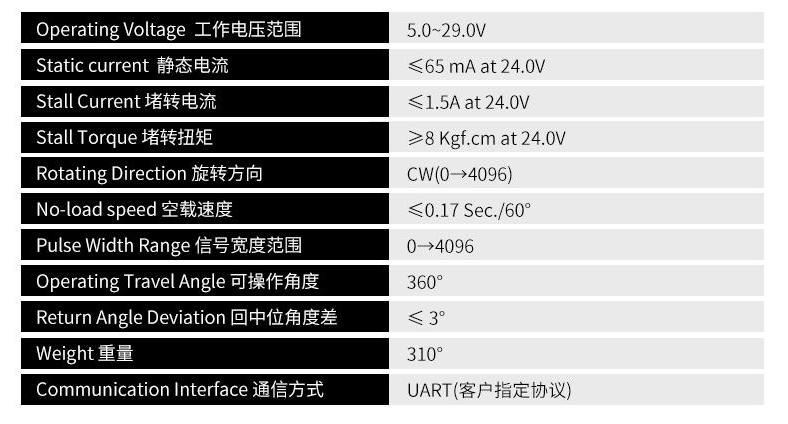

Specification parameter

Product characteristics

• Steel transmission structure + high life brushless motor

The steel transmission structure greatly reduces the impact of the material box on the steering gear, and effectively improves the stability and service life of the steering gear. At the same time, with a high-life brushless motor and magnetic encoder, the life of the steering gear is further improved, and the warranty is up to 2 years or 2 million times.

• RS485+ multi-angle position calibration

The closed-loop control with integrated RS485 control and multi-angle position calibration system can accurately position the steering gear, and effectively improve the motion consistency of the steering gear.

• Integrated modular design

The integrated modular design integrates the drive + motor + lever of the steering gear into one module, simplifying the installation and maintenance process. At the same time, the factory can be preset in the middle, further simplifying the installation steps of the steering gear, that is, ready to use.

• Multiple protection mechanisms

It is equipped with multiple protection mechanisms such as rotating block protection, voltage protection and temperature protection. When the internal environment changes, such as torque and temperature exceeding the limit, the protection mechanism will be automatically touched to start, so as to protect the steering gear. Lockup protection is preset before delivery. Other protection mechanisms can be enabled through protocols and thresholds can be set.

• Super adaptability to the environment, it can still work normally in the environment of -40℃~+85℃, ≤90%RH

• A variety of styles to choose from, can be customized
