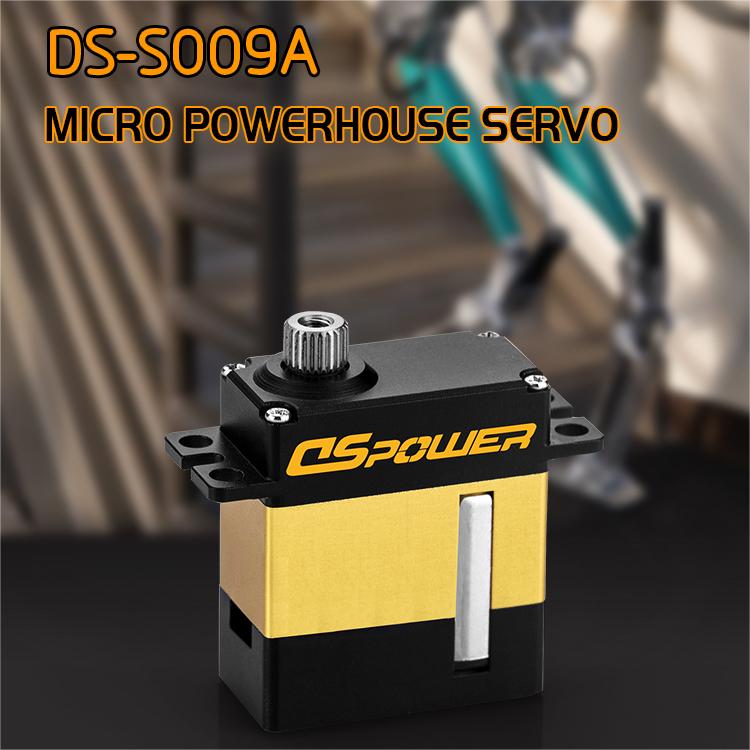

New upgrade! The DS-S009A challenges the extreme performance of the 9g steering gear with multi-protocol support

Desheng smart ingenuity, 6KG torque, upgrade all metal 9g steering gear! As a comprehensive upgrade of the 9g metal-toothed steering gear, the S009A offers the best performance in this size category. The all-aluminum frame housing + hollow cup motor design provides higher strength and stability while maintaining light weight; Multi-protocol support to meet the communication and control needs between different systems and devices.

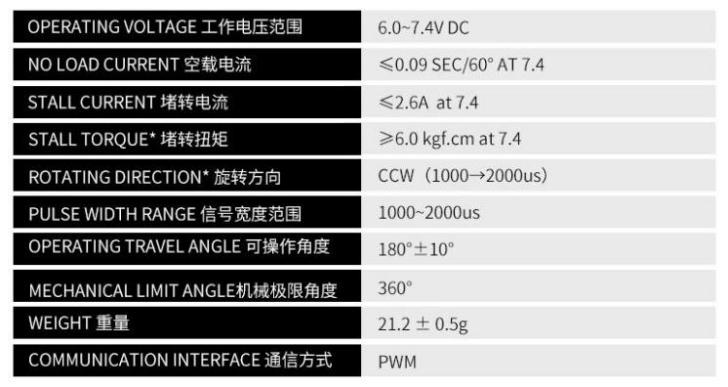

Specification parameter

Product advantage

• Upgrade the all-metal structure

Compared with the plastic steering gear, the all-metal steering gear has higher strength and stability, better durability and heat dissipation, which greatly improves the service life of the steering gear.

• High torque hollow cup motor + all aluminum frame housing

The hollow cup motor provides a large torque of up to 6kgf.cm, and at the same time, with the all-aluminum enclosure design, the heat dissipation performance of the steering gear is improved to a greater extent.

• Electronic burn protection

Effectively protect the steering gear circuit, prevent accidents, improve work efficiency, simplify maintenance and adapt to different working environments.

• Multi-protocol support

On the basis of the original PWM communication, it can also be expanded to support RS485, TTL and other communication methods, and there are TTL+ magnetic encoder, TTL+ potentiometer and other combination methods to achieve more flexible and diversified communication needs.

• Versatile

As a comprehensive upgrade of the 9g metal-toothed steering gear, it is further expanded on the original application scenario, and the 6KG super torque makes it still show excellent performance in industrial automation equipment.

Company brand endorsement, a number of industry utility patents, exclusive clutch tooth design; Passed ISO 9001, ISO14001 certification; All products have CE,ROSH,FCC.
